상세 정보 |
|||
| 유형: | MIPI 카메라 모듈 | 감지기: | OV8825 |
|---|---|---|---|
| 해결: | 8MP (3264*2448) | 치수: | 맞춤형 |
| 렌즈 FOV: | (선택적입니다) | 초점 유형: | 오토 포커스 |
| 인터페이스: | 미피 | 특징: | 저전력 소비 |
| 강조하다: | USB camera module with autofocus,8MP OV8825 camera module,high-resolution USB camera module |
||
제품 설명

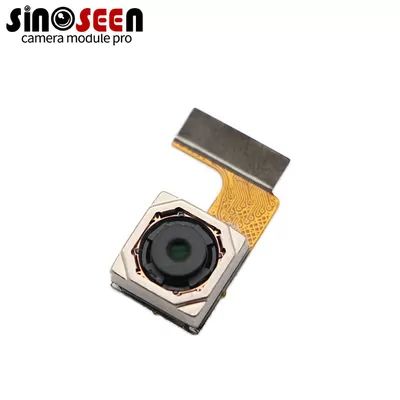

USB Camera Module High-Res OV8825 Autofocus
Ultra-High Resolution 8MP USB Camera Module for Precision Visual Systems
The 8MP USB camera module utilizing a state-of-the-art 1/2.3" CMOS sensor delivers exceptional 8-megapixel imaging with 3264x2448 resolution, optimized for applications demanding intricate detail and wide coverage. This module integrates USB 3.0 interface for high-bandwidth data transfer up to 5 Gbps, enabling smooth 4K-equivalent streams without compression artifacts.
Product Advantages
- Ultra-Fine Detail Capture: 8MP resolution enables 4x the pixel density of 1080P modules, ideal for inspection and analytics.
- High-Speed Interface: USB 3.0 supports uncompressed video at 30 fps, minimizing latency in real-time systems.
- Compact Versatility: Slim design fits into OEM housings without sacrificing optical quality.
- Customizable Optics: Adjustable lens mounts for tailored field of view needs.
- Efficient Power Management: Operates at under 2.5W with thermal optimization for prolonged reliability.
Product Specifications
| Parameter | Value |
|---|---|
| Sensor | 1/2.3" CMOS, 8MP |
| Resolution | 3264x2448 (8MP) |
| Interface | USB 3.0 (UVC compliant) |
| Frame Rate | Up to 30 fps at 8MP |
| Lens Mount | M12 or CS, 3.6mm focal length, F1.8 aperture |
| Field of View | 85° (diagonal) |
| Dynamic Range | >70 dB |
| Power Consumption | 5V DC, <2.5W |
| Operating Temperature | -20°C to +70°C |
| Dimensions | 38mm x 38mm x 20mm |
| Compliance | CE, FCC, RoHS |
Product Application Fields
- Machine Vision: Precision quality control for defect analysis.
- Surveillance: Wide-area monitoring with detailed facial recognition capabilities.
- Medical Imaging: High-res endoscopy and diagnostic equipment enhancements.
- Autonomous Robotics: Environmental mapping and obstacle detection.
- Smart Retail: Inventory scanning and customer behavior analytics.
About Our Company
Sinoseen, a renowned Chinese camera module manufacturer with over ten years of deep industry insight, delivers comprehensive visual application solutions to clients across the globe. We support OEM/ODM initiatives for USB, MIPI, and DVP interface modules, empowered by our expert technical and service teams.
Frequently Asked Questions
What boosts the low-light performance in the high resolution 8MP USB camera module?
Advanced pixel tech yields >70 dB dynamic range, excelling in dim settings for high resolution imaging.
How quick is prototyping for compact 8MP USB camera modules?
Units ready in 3 weeks. Contact us for samples and quotes.
Does the 8MP vs 2MP USB camera module justify the upgrade for surveillance?
Yes, 4x detail enhances detection capabilities for surveillance applications.
USB 3.0: SuperSpeed USB standard providing 5 Gbps throughput for high-data applications (USB-IF).
Dynamic Range: Sensor's ability to capture tonal variations; >70 dB supports broad lighting adaptability (Image Sensors World).
Dynamic Range: Sensor's ability to capture tonal variations; >70 dB supports broad lighting adaptability (Image Sensors World).
