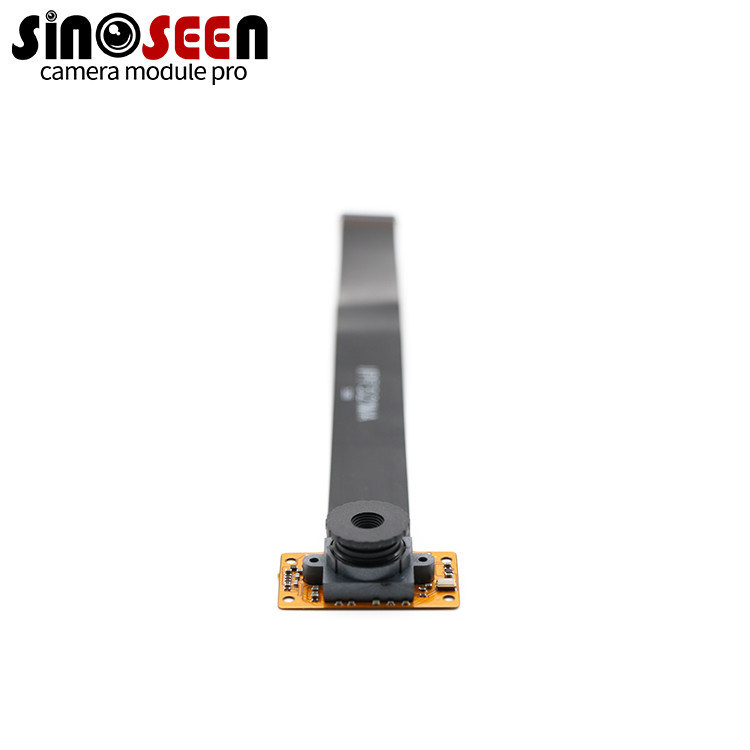

5MP AR0521 MIPI Camera Module with 2592x1944 Resolution for High-Detail Industrial and Machine Vision Applications
제품 상세 정보:
| 원래 장소: | 중국 심천 |
| 브랜드 이름: | Sinoseen |
| 인증: | RoHS |
| 모델 번호: | SNS51734-V10 |
결제 및 배송 조건:
| 최소 주문 수량: | 3 |
|---|---|
| 가격: | 10-100USD、negotiable |
| 포장 세부 사항: | 카톤 박스의 트레이+반 정적 가방 |
| 배달 시간: | 2-3 주 |
| 지불 조건: | t/t |
| 공급 능력: | 500000 조각/월 |
|
상세 정보 |
|||
| 유형: | 5 조금약하게 카메라 모듈 | 감지기: | 5분의 1 인치 |
|---|---|---|---|
| 해결: | 5MP 2592(H) Ｘ 1944(V) | 치수: | (주문형입니다) |
| 렌즈 FOV: | (선택적인) 80' | 초점 유형: | 고정 초점 |
| 인터페이스: | MIPI 카메라 모듈 | 특징: | 고화질 |
| 강조하다: | 5MP MIPI camera module,AR0521 industrial camera module,high-resolution machine vision camera |
||
제품 설명
5MP AR0521 MIPI Camera Module with 2592x1944 Resolution
Product Description
The Sinoseen AR0521 5MP MIPI camera module delivers high-resolution imaging with a 2592x1944 pixel sensor. It features high dynamic range (HDR) for enhanced detail in bright and dark areas, ensuring precise, clear images for demanding industrial and machine vision applications.
Equipped with a MIPI interface, this module allows fast and stable data transfer for embedded systems, robotics, and surveillance devices. Adjustable parameters include brightness, contrast, white balance, gamma, and exposure, enabling fine-tuned image optimization.
Its fixed-focus M12 lens mount with 80° DFOV allows flexible integration into custom setups. The module supports low power consumption, reliable performance, and broad OS compatibility including Windows, Linux, macOS, and Android.
Highlights
- 5MP AR0521 CMOS sensor with 2592x1944 resolution
- High dynamic range (HDR) improves detail in bright and dark scenes
- MIPI interface for fast data transmission and embedded integration
- Adjustable brightness, contrast, white balance, exposure, gamma
- Fixed-focus M12 lens mount, DFOV 80°
Specification
| Model No | SNS51734-V1.0 |
|---|---|
| Sensor | 1/5'' inch |
| Pixel | 5 Mega Pixel |
| Most effective pixels | 2592(H) x 1944(V) |
| Pixel Size | 1.2µm x 1.2µm |
| Shutter Type | Electronic rolling shutter |
| Focus type | Fixed focus |
| S/N ratio | 36dB |
| Dynamic range | 72 dB @ 8x gain |
| Sensitivity | 690mV / lux-sec |
| Adjustable parameter | Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure |
| Lens | TTL: 23.89MM Lens Size: 1/3 inch DFOV: 80° Thread Size: M12*P0.5 |
| Audio frequency | Optional |
| Power supply | mipi |
| Power consumption | DC 5V, 200mW |
| Main chip | DSP/SENSOR/FLASH |
| Auto Exposure Control (AEC) | Support |
| Auto White Balance (AEB) | Support |
| Auto Gain Control (AGC) | Support |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 60°C |
| Support OS | WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
