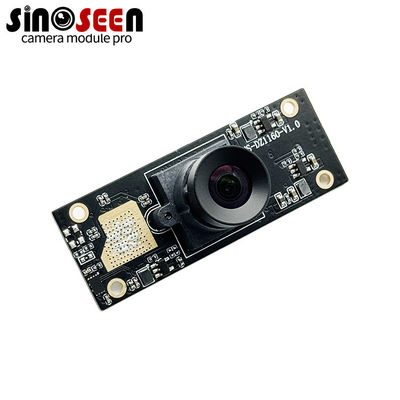

Sinoseen 1/2.8 CMOS USB2.0 Camera Module 4K UHD 30fps for AI Vision Industrial Inspection and Automation
제품 상세 정보:
| 원래 장소: | 중국 |
| 브랜드 이름: | Sinoseen |
| 인증: | RoHS |
| 모델 번호: | SNS-DZ1160-V1.0 |
결제 및 배송 조건:
| 최소 주문 수량: | 5 |
|---|---|
| 가격: | 10-100USD、negotiable |
| 포장 세부 사항: | 카톤 박스의 트레이+반 정적 가방 |
| 배달 시간: | 2-3 주 |
| 지불 조건: | t/t |
| 공급 능력: | 500000 조각/월 |
|
상세 정보 |
|||
| TV 왜곡: | <1.0% | 감지기: | 8 메가픽셀 IMX179 |
|---|---|---|---|
| 모듈 픽셀: | 5MP | 픽셀: | 2MP 네트워크 포트 카메라 |
| 이미지 해상도: | 640*480 | 픽셀 크기: | 3.0 um Ｘ 3.0 um |
| 핀 배치: | 24개 핀 | 색상: | 검은색 |
| 운영 체제 요청: | 윈도우즈 XP / 7/8/10 (지원 UVC 프로토콜) | 오디오 출력: | 오디오 마이크 입력 |
| 출력 형식: | MJPEG / YUV | 단위 셀 크기: | 1.55 um (H) Ｘ 1.55 um (V) |
| 최대 픽셀 속도: | 28Mp/s | 장비 전력: | 1.8W |
| 인터페이스: | USB 2.0 | ||
| 강조하다: | 4K UHD USB camera module,CMOS USB2.0 camera for AI vision,industrial inspection USB camera module |
||
제품 설명
Sinoseen 1/2.8 CMOS USB2.0 Camera Module 4K UHD 30fps for AI Vision Industrial Inspection and Automation
Product Description
The Sinoseen 1/2.8 CMOS USB2.0 camera module delivers 4K UHD image resolution at 30fps, providing smooth, accurate imaging for AI systems and industrial vision applications. Featuring advanced CMOS sensor technology, it offers precise color capture, low noise, and consistent performance across various environments.
With USB2.0 high-speed transmission, the module supports plug-and-play connectivity for reduced setup time. It handles MJPG and YUV video formats, enabling flexible integration with automation, robotics, and embedded systems.
The module features adjustable exposure, brightness, contrast, and color correction for optimal image quality in diverse conditions. Fully compatible with Windows, Linux, and Android, it's ideal for AI vision projects, industrial inspection equipment, educational displays, and video conferencing systems.
Key Features
- 4K UHD resolution at 30fps for sharp, real-time imaging
- USB2.0 high-speed interface with plug-and-play functionality
- Supports MJPG and YUV formats for flexible system integration
- Adjustable exposure, brightness, and color parameters
- Low-light performance with stable dynamic range output
Technical Specifications
| Signal | SNS-DZ1160-V1.0 | Remarks |
|---|---|---|
| Image Sensor Size | 1/2.8"inch | |
| Effective Pixels | 3864H*2228V | |
| Pixel size | 1.45 um*1.45 um | |
| Optical distortion | < 1.4% | |
| Image sensor Data output | Raw Bayer 10bits | |
| Video output | MPJG /YUV | |
| Maximum Frame Rates |
3840*2160 30FPS 2592*1944 30FPS 2048*1536 30FPS 1600*1200 30FPS 1920*1080 30FPS 1280*960 30FPS 1280*720 30FPS 800*600 30FPS 640*480 30FPS 320*240 30FPS |
|
| Digital interface | 5 pin 1.25mm USB2.0 | Cable length 1.5m |
| Transfer rates | 480MB/S | |
| Power requirements | 5V ±5% | |
| Storage temperature | -20℃ to 70℃ | |
| Operating temperature | -10℃ to 60℃ | |
| PCB printing ink | black | |
| Supported OS |
Windows XP/Vista/7/8.1/10 Mac/Android/Linux 2.6.2 (including UVC) |
|
| Lens view | M12*P0.5 | LENS |
| Lens Construction | 4G2P+IR | |
| F/NO aperture | 2.8±5% | |
| EFL effective focal length | 2.74 mm±5% | |
| FOV angle | 102°±3° | |
| Focus method | Fixed focus | |
| Shooting distance | 60 cm-∞ | |
