• 5MP VB1940 CMOS Camera Module with USB2.0 High-Resolution Imaging Solution for Machine Vision
5MP VB1940 CMOS Camera Module with USB2.0 High-Resolution Imaging Solution for Machine Vision

5MP VB1940 CMOS Camera Module with USB2.0 High-Resolution Imaging Solution for Machine Vision

제품 상세 정보:

원래 장소: 중국
브랜드 이름: Sinoseen
인증: RoHS
모델 번호: SNS-GM1133-V1.0

결제 및 배송 조건:

최소 주문 수량: 5
가격: 10-100USD、negotiable
포장 세부 사항: 카톤 박스의 트레이+반 정적 가방
배달 시간: 2-3 주
지불 조건: t/t
공급 능력: 500000 조각/월
최고의 가격 접촉

상세 정보

센서 유형: CMOS 모듈 크기: 두 개의 레이어 38mmX38mm
오디오 입력: 채널 오디오 마이크 입력 표준 인터페이스: USB2.0 고속도
픽셀 크기: 1.4 um x1.4um 코딩된 형식: H.265/H.264
전력 소비: 약 140mA 물체 거리: 6CM-200CM
운전 방법: 운전 자유 F 값: 2.2
작동 전류: 610mA(VGA) 맥스 이미지 서큘: 4.8mm
작품: 8층 설계 보증: 10 년
호환성: Windows, Mac, Linux
강조하다:

5MP USB camera module for machine vision

,

VB1940 CMOS camera module with USB2.0

,

high-resolution USB camera module for imaging

제품 설명

5MP VB1940 CMOS Camera Module with USB2.0 High-Resolution Imaging Solution for Machine Vision

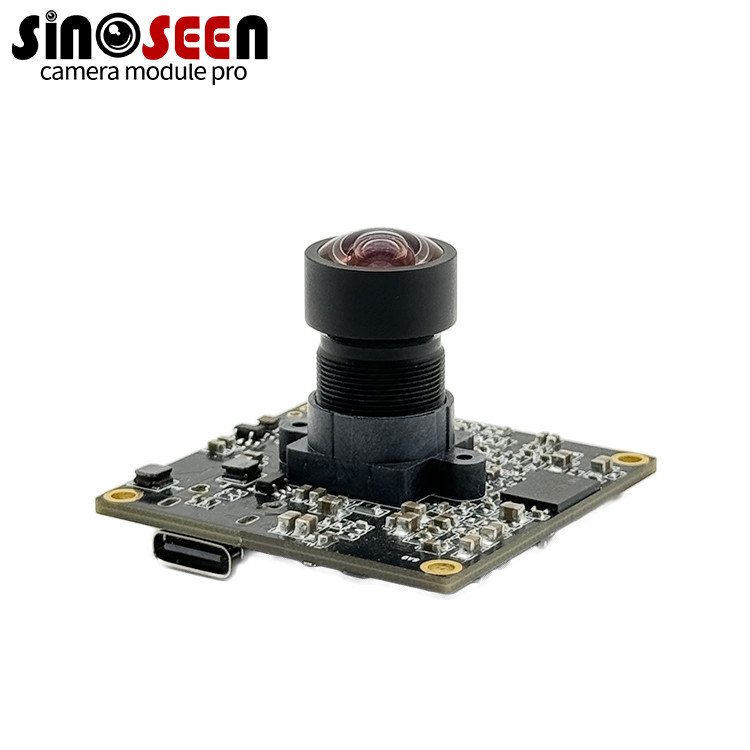

The Sinoseen 5MP USB2.0 CMOS camera module is designed for developers and system integrators who demand crisp image quality and stable performance. Powered by the VB1940 1/2.8-inch CMOS sensor, it captures 2592 *1944 resolution images with accurate color and superior low-light sensitivity, ideal for professional imaging solutions.
With plug-and-play USB2.0 connectivity, it ensures smooth installation and stable transmission up to 480MB/s. The module supports MJPG and YUV output, and is compatible with Windows, Mac, Linux, and Android platforms. Its robust design makes it suitable for AI vision, industrial inspection, surveillance, and video conferencing applications.
Key Features
  • 5MP VB1940 CMOS sensor for clear, sharp images
  • USB2.0 high-speed plug-and-play connection
  • Supports MJPG / YUV formats
  • Accurate color and excellent low-light imaging
  • Cross-platform compatibility: Windows, Linux, Mac, Android
  • Ideal for AI vision, industrial automation, and video systems
Technical Specifications
Signal SNS-GM1133-V1.0 Remarks
Image Sensor Size 1/2.8inch
Effective Pixels 2592H*1944V
Pixel size 2.0 um*2.0 um
Optical distortion <0.45%
Image sensor Data output Raw Bayer 10bits
Video output MPJG/YUV
Maximum Frame Rates 2592*1944 30 FPS
1920*1080 30 FPS
1600*1200 30 FPS
MJPG
Digital interface Type-c USB2.0 1.5m cable
Transfer rates 480MB/S
Power requirements 5V±5%
Storage temperature -20℃ to 70℃
Operating temperature -10℃ to 60℃
OS Support Windows XP/Vista/7/8.1/10/Mac/Android/Linux 2.6.2 (include UVC)
Default lens M12*P0.5 LENS
Lens Construction 3G2P+650IR
F/NO aperture 3.0±5%
EFL effective focal length 4.18 mm±5%
FOV angle 82°±3°
Focus method Fixed focus
Shooting distance 60cm-∞
