원래 장소:
중국
브랜드 이름:
Sinoseen
인증:
RoHS
모델 번호:
SNS-DZ1194-V1.0

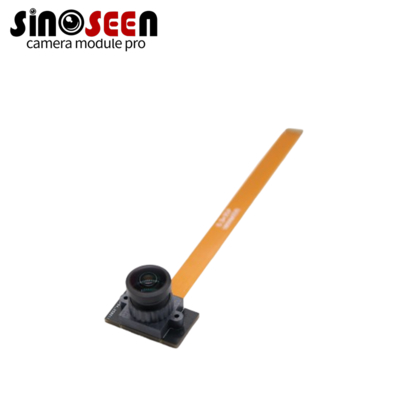

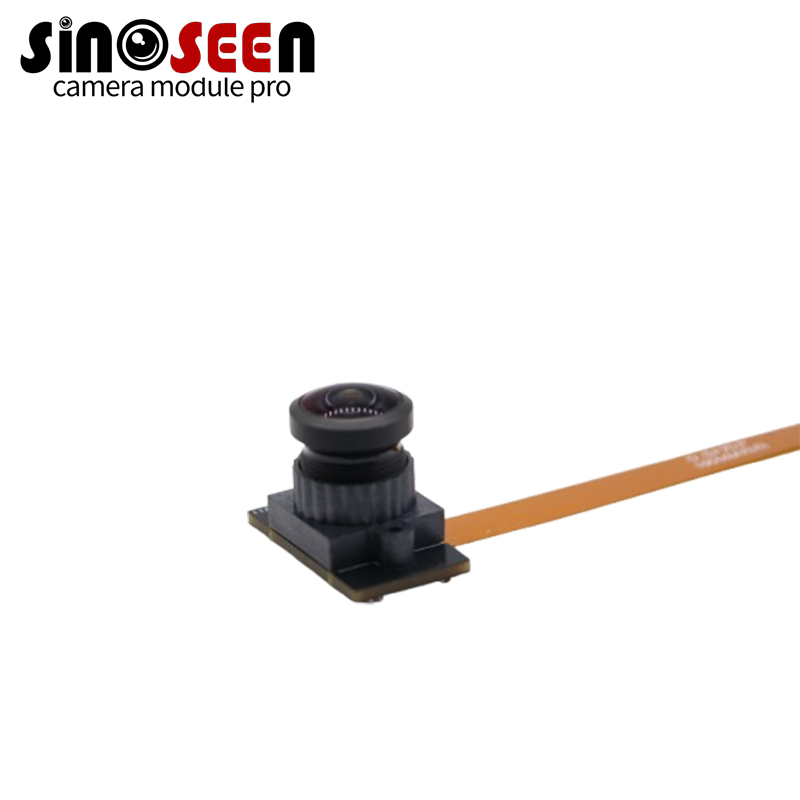

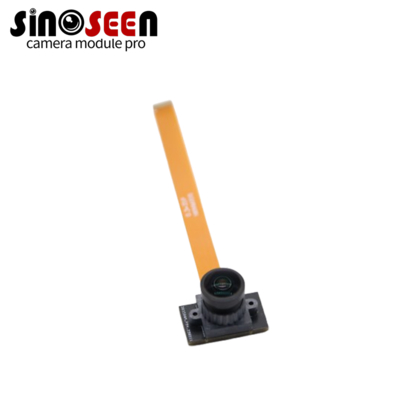

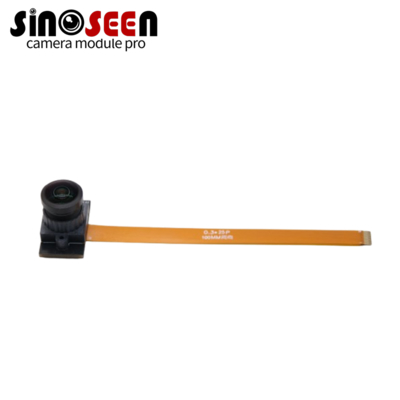

The IMX462LQR-C sensor produces 2MP images with clear details and accurate colors. Its back-illuminated pixel array improves performance in low-light.
It works well in industrial inspection, factory automation, and security cameras. The sensor provides stable images and is reliable under different conditions.
It is compact and easy to integrate. Its low power consumption makes it suitable for long-term use in embedded camera modules.
2MP sharp images
Back-illuminated pixel array
Low power use
Stable and reliable images
| Item | Specification |
|---|---|
| Sensor Type | CMOS Image Sensor |
| Image Sensor Size | 1/2.8” |
| Total Number of Pixels | 1945 (H) × 1109 (V) ≈ 2.16 M pixels |
| Number of Effective Pixels | 1945 (H) × 1097 (V) ≈ 2.13 M pixels |
| Number of Active Pixels | 1937 (H) × 1097 (V) ≈ 2.12 M pixels |
| Recommended Recording Pixels | 1920 (H) × 1080 (V) ≈ 2.07 M pixels |
| Unit Cell Size (Pixel Size) | 2.9 µm × 2.9 µm |
| Optical Black Region | Horizontal: Front 0 pixels / Rear 0 pixels Vertical: Front 10 pixels / Rear 0 pixels |
| Dummy Pixels | Horizontal: Front 0 pixels / Rear 3 pixels Vertical: Front 0 pixels / Rear 0 pixels |
| Substrate Material | Silicon |
