원래 장소:
중국
브랜드 이름:
Sinoseen
인증:
RoHS、ISO9001、CE
모델 번호:

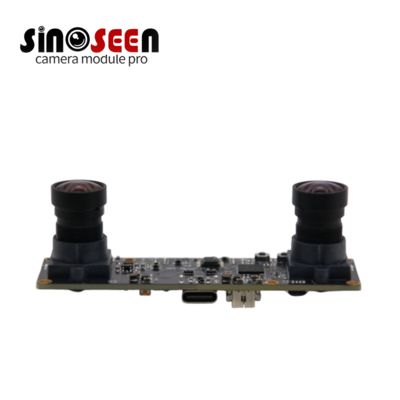

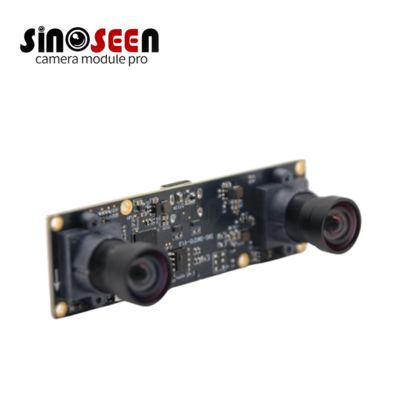

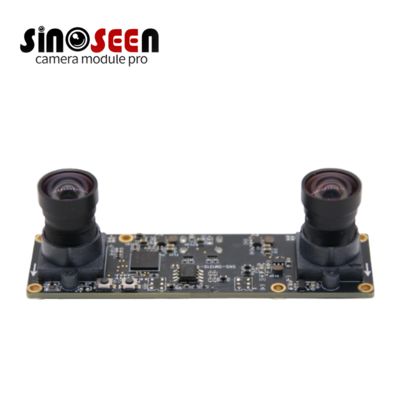

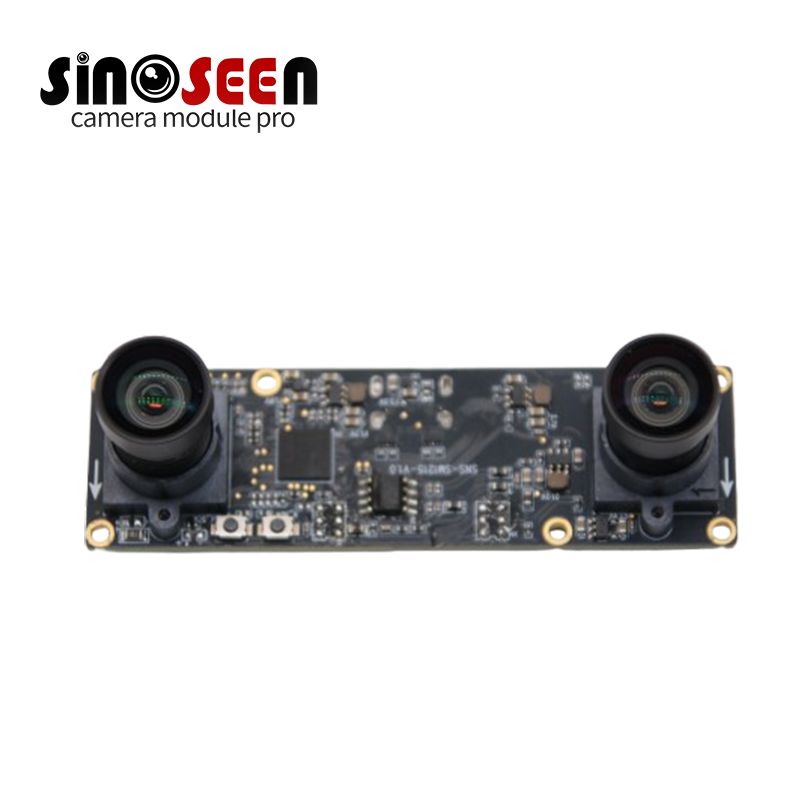

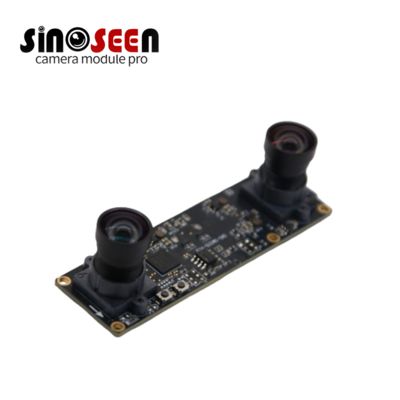

SNS-USB360-1.0
| Module No | SNS-USB360-1.0 |
|---|---|
| Pixel Size | 3.5 μm * 3.5 μm |
| Effective Pixels | HD 1536(H) * 1536(V) |
| Video Output Format | H.264 / H.265 |
| 360° Stitching Resolution | 3576 * 1536 @ 30fps |
| Image Sensor Size | 1/2.4" |
| OTG Protocol Support | USB 2.0 OTG |
| Driver-Free Protocol | USB Video Class (UVC) |
| Image Controls | Auto Exposure, White Balance, Gain Control |
| Adjustable Parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Compensation, Exposure |
| Lens | FOV 210° |
| Interface | Type-C |
| Operating Voltage | DC 5V |
| Power Consumption | 1.5W ~ 2W |
| Operating Temperature | 0 ~ 65°C |
| Board Size | 150 * 55 mm |
| Cable Length | Standard 1 m / 1.5 m |
| Supported OS | Windows 10 |
