상세 정보 |
|||
| 유형:: | MIPI 카메라 모듈 | 감지기: | OV9281 단색 CMO |
|---|---|---|---|
| 해결: | 1280 × 800 | 치수: | (32mmx32mm와 호환) |
| 강조하다: | OV9281 MIPI camera module,1280x800 global shutter camera,machine vision camera module |
||
제품 설명
High-Resolution and High-Performance MIPI Camera Module for Machine Vision and Biometric Recognition
Product Attributes
| Type | MIPI Camera Module |
|---|---|
| Sensor | OV9281 Monochrome CMOS |
| Resolution | 1280 × 800 |
| Dimensions | Compatible with 32mm × 32mm |
| High Light | MIPI Camera Module, Machine Vision OV9281 Camera Module |
Product Description

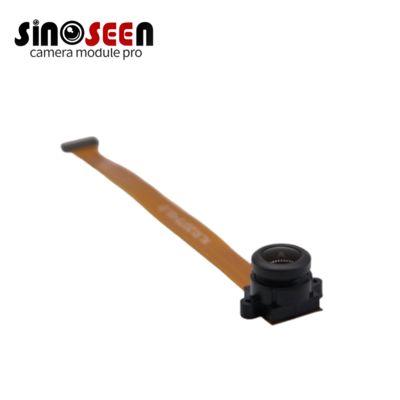

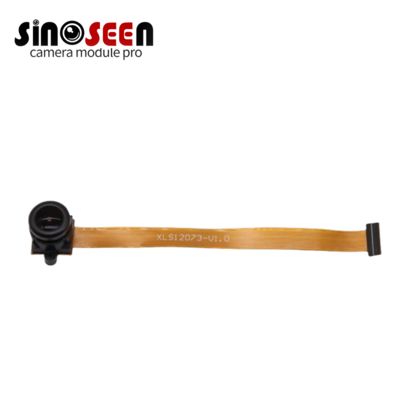

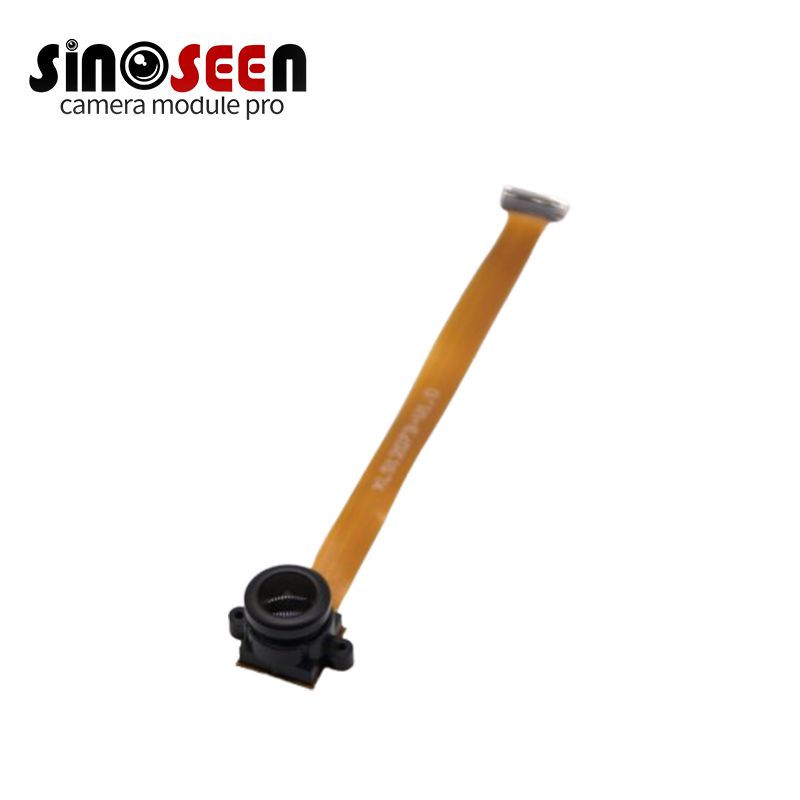

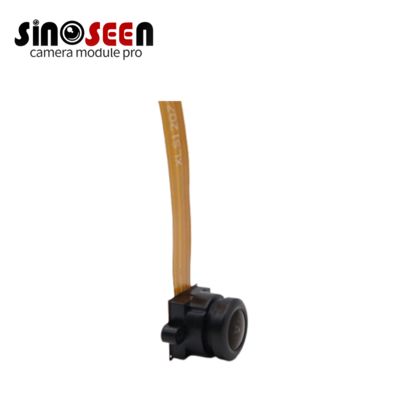

The XLS12073-V1.0 OV9281 camera module combines speed, clarity, and flexibility, making it a perfect fit for barcode scanners, AR/VR devices, industrial inspection, and biometric recognition. Its global shutter sensor ensures distortion-free images, even with fast-moving objects. With 1280 × 800 resolution at 120fps and a wide 120° field of view, it enables reliable imaging across multiple industries.
Product Highlights
- Reliable for Machine Vision - Consistent and accurate image capture
- Optimized for AR/VR - Wide-angle view with low distortion
- Security Ready - Trusted in face and iris recognition systems
- High-Speed Scanning - Perfect for barcode and QR code readers
Applications
QR code & barcode scanners
AR/VR headset vision modules
Gesture recognition systems
Iris and facial authentication
Industrial automation & inspection
OV9281 Camera Module (XLS12073-V1.0) Specifications
| Model | XLS12073-V1.0 |
| Sensor | OV9281 Monochrome CMOS |
| Sensor Size | 1/4 inch |
| Effective Pixels | 1280 × 800 (1MP) |
| Frame Rate | 1280×800 @120fps / 640×480 @120fps / 320×240 @120fps |
| Pixel Size | 3.0 μm × 3.0 μm |
| Shutter Type | Global Shutter |
| Output Interface | 1/2-lane MIPI, DVP parallel |
| Output Format | 10-bit RAW |
| Focus Type | Fixed Focus (FF) |
| Field of View (FOV) | 120° (optional) |
| Lens Size | 1/4 inch |
| Module Dimensions | 118.5 × 14 mm |
| Package Size | 11.7 × 13 mm |
| Power Supply | Analog: 2.8V (typical), Core: 1.2V (typical), I/O: 1.8V (typical) |
| Power Consumption | Active: 134mW, Standby: 65μA, Shutdown: 50μA |
| Operating Temperature | -30°C to +85°C |
| Stable Imaging Temperature | 0°C to 50°C |
| Image Area | 3896 μm × 2453 μm |
| Active Array Size | 1296 × 816 |
| Scan Mode | Progressive |
| Exposure Time | Min: 1 row period / Max: frame length - 12 row periods |
| Platform Compatibility | Rockchip, Qualcomm, Allwinner, MTK, Spreadtrum, Hisilicon, Mstar, STM32 |
| Typical Applications | Barcode scanning, QR code recognition, 3D scanning, industrial inspection, face recognition, AR/VR devices, pattern detection, gesture recognition, iris recognition, machine vision, high-speed capture |
