상세 정보 |
|||
| 유형:: | MIPI 카메라 모듈 | 감지기: | IMX230 |
|---|---|---|---|
| 해결: | 5344 × 4016 | 치수: | (32mmx32mm와 호환) |
| 강조하다: | IMX230 MIPI camera module 21MP,MIPI camera module with HDR,embedded systems camera module |
||
제품 설명

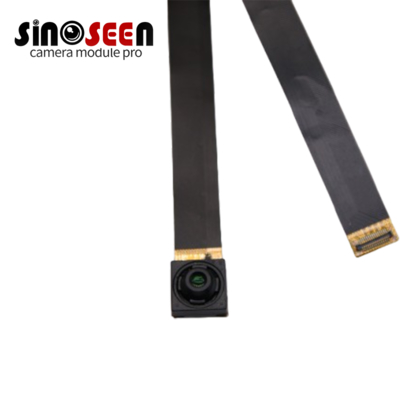

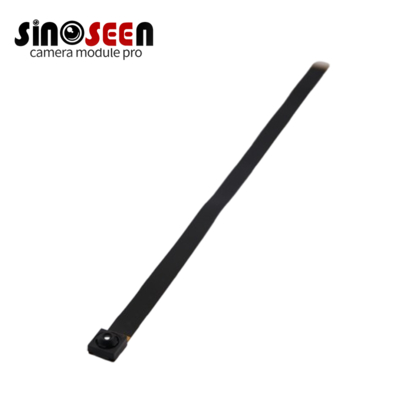

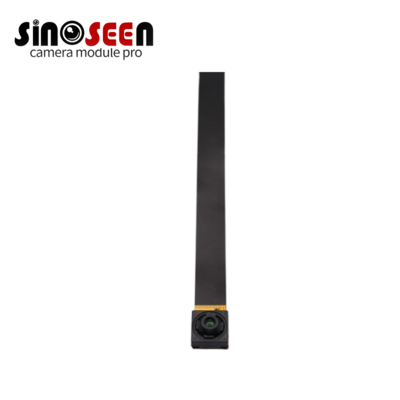

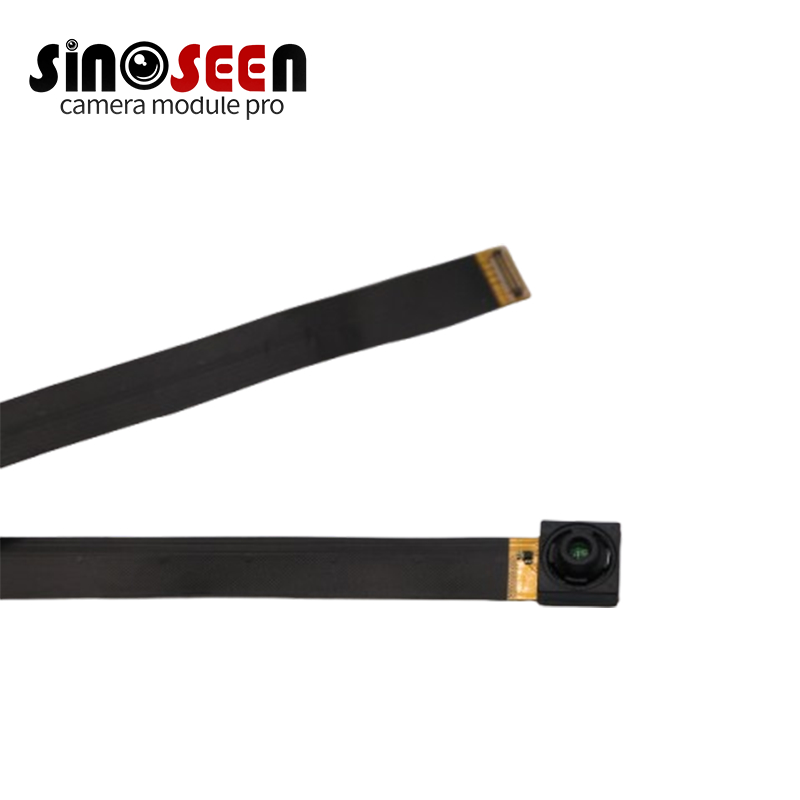

IMX230 MIPI Camera Module 21MP HDR for Embedded Systems
Product Overview
Designed for smart devices and embedded systems, the IMX230 camera module offers 5344 × 4016 resolution at 24fps, providing crisp, detailed images. Its HDR capability ensures accurate colors even in challenging lighting conditions.
Key Specifications
| Attribute | Value |
|---|---|
| Type | MIPI Camera Module |
| Sensor | IMX230 |
| Resolution | 5344 × 4016 (21MP) |
| Dimensions | Compatible with 32mm × 32mm |
| Module Size | 22 × 10.8 mm |
Key Features
- High-resolution 21MP sensor with fast MIPI interface
- Single-frame HDR and dual sensor synchronization
- Built-in temperature sensor and dynamic defect pixel correction
- Ideal for facial recognition, drones, toy cameras, pattern detection, dashcams
- Compact module for easy integration
Technical Specifications
| Parameter | Specification |
|---|---|
| Sensor Model | IMX230 |
| Pixel Size | 1.12 µm × 1.12 µm |
| Optical Size | 1/2.3" |
| Sensor Type | Back-illuminated, stacked CMOS (Exmor RS™) |
| PDAF | Phase Detection Auto Focus |
| Max Frame Rate | Full resolution 24fps, 4K2K 30fps, 1080p 60fps |
| Output Interface | CSI-2 serial data (2/4 lane, 1.5 Gbps/lane, D-PHY v1.1) |
| Field of View | 78° (optional) |
| IR Filter | 650nm |
Applications
Facial recognition, skin analysis, drone cameras, toy cameras, pattern detection, dashcams. Supported platforms include Qualcomm, Allwinner, MTK, Spreadtrum, HiSilicon, and MStar.
