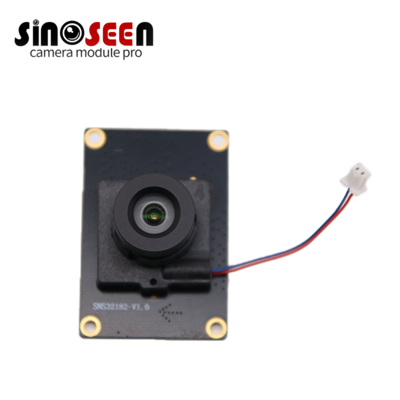

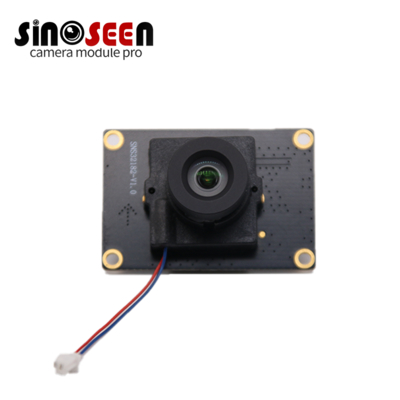

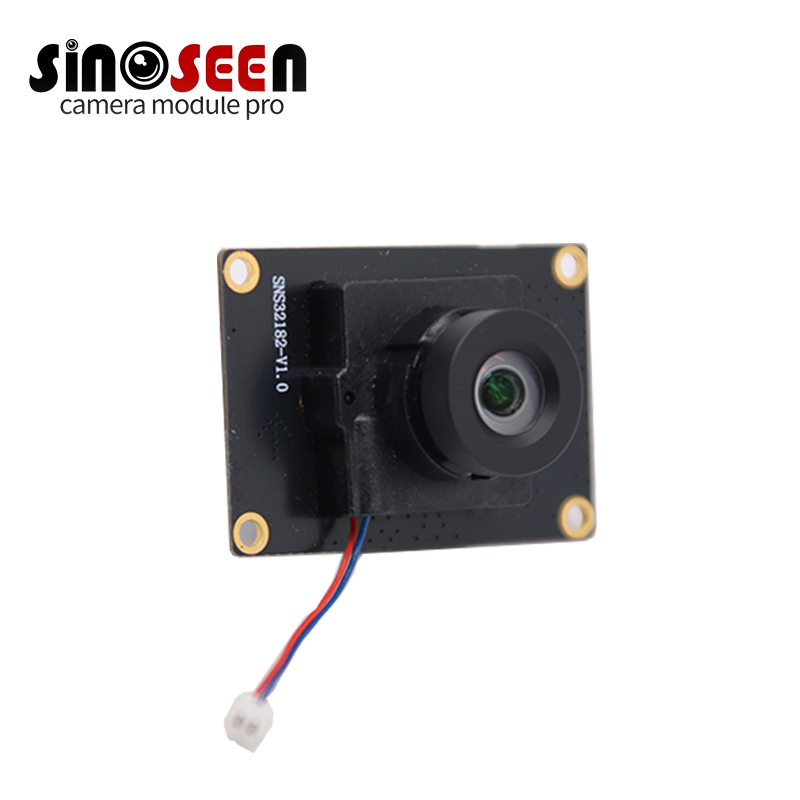

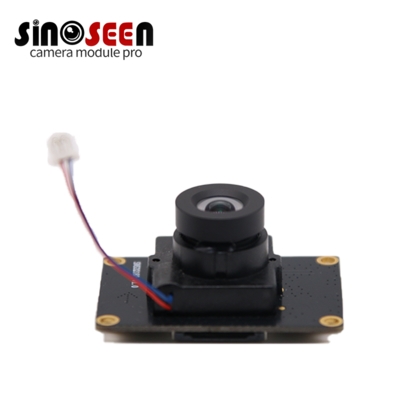

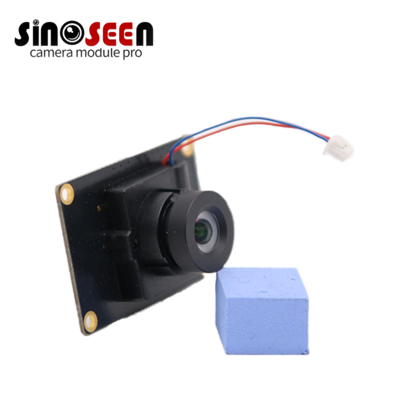

SC3336 MIPI Camera Module 3MP 2304x1296 30fps Low-Light
제품 상세 정보:
| Place of Origin: | China |
| 브랜드 이름: | Sinoseen |
| 인증: | RoHS、ISO9001、CE |
| Model Number: | SNS32182-V1.0 |
결제 및 배송 조건:
| Minimum Order Quantity: | 5 |
|---|---|
| 가격: | 10-100USD or negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3week |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
상세 정보 |
|||
| Type:: | MIPI Camera Module | Sensor: | SC3336 |
|---|---|---|---|
| Resolution: | 2304 × 1296 | Dimensions: | (compatible With 32mmx32mm) |
| 강조하다: | MIPI camera module 3MP low-light,MIPI camera module 2304x1296 resolution,MIPI camera module 30fps performance |
||
제품 설명
SC3336 MIPI Camera Module 3MP 2304x1296 30fps Low-Light Sensitivity
Product Attributes
| Type | MIPI Camera Module |
| Sensor | SC3336 |
| Resolution | 2304 × 1296 |
| Dimensions | (compatible With 32mmx32mm) |
| High Light | mipi Camera Module, Machine Vision SC3336 Camera Module |
Product Overview
The SC3336 3MP MIPI camera module (SNS32182-V1.0) is designed to deliver clear, detailed imaging in compact devices. Built around a 1/2.8" CMOS sensor with a 2.45 µm pixel size, it supports 2304 ×1296 resolution at 30fps with excellent 78 dB dynamic range and 38 dB SNR, ensuring sharp images even in complex lighting conditions.
Key Features
- 130° wide-angle lens (optional) for broad field of view
- Exceptional low-light sensitivity (5053 mV/Lux*s)
- Standard MIPI interface for easy integration
- Compact design for space-constrained applications
- Wide operating temperature range (-30°C to +85°C)
Technical Specifications
| Sensor Model | SC3336 |
| Resolution | 3MP (2304 × 1296 @ 30fps) |
| Pixel Array | 2312 × 1304 |
| Pixel Size | 2.45 µm × 2.45 µm |
| Optical Size | 1/2.8" |
| Output Format | RAW RGB, 10/8-bit |
| Output Interface | 1/2 Lane MIPI |
| Dynamic Range | 78 dB |
| SNR | 38 dB |
| Sensitivity | 5053 mV/Lux*s |
| Shutter Type | Rolling Shutter |
| CRA | 15° |
| IR Filter | 650 nm |
| Operating Temp | -30°C ~ +85°C |
| Optimal Temp | -20°C ~ +60°C |
| Package | CSP, 6.199 mm × 4.139 mm, 35-pin |
| Power Supply | AVDD 2.8V ±0.1V, DOVDD 1.8V ±0.1V (DVDD built-in LDO) |
| Module Model | SNS32182-V1.0 |
| Focus Type | Fixed Focus |
| Field of View | 130° (optional) |
| Module Size | 75 × 8.5 mm |
Applications
This versatile camera module is ideal for:
- Smart home monitoring systems
- Facial recognition devices
- Drones and aerial imaging
- Video doorbells and security cameras
- Dashcams and action cameras
- Document scanners and digital signage
- Toy cameras and educational devices
Supported Platforms
The module is compatible with popular platforms including RK, Qualcomm, Allwinner, MTK, Spreadtrum, HiSilicon, and MStar.
