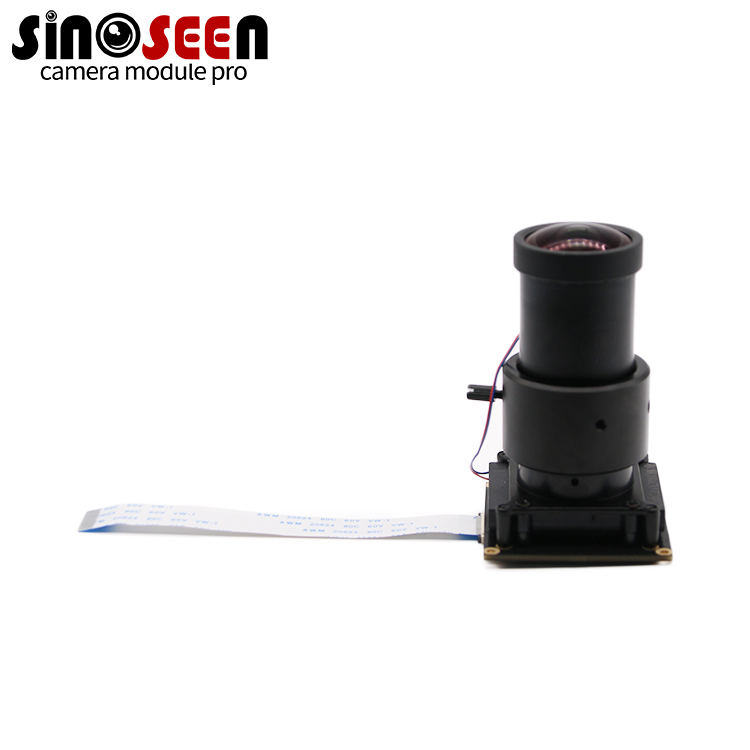

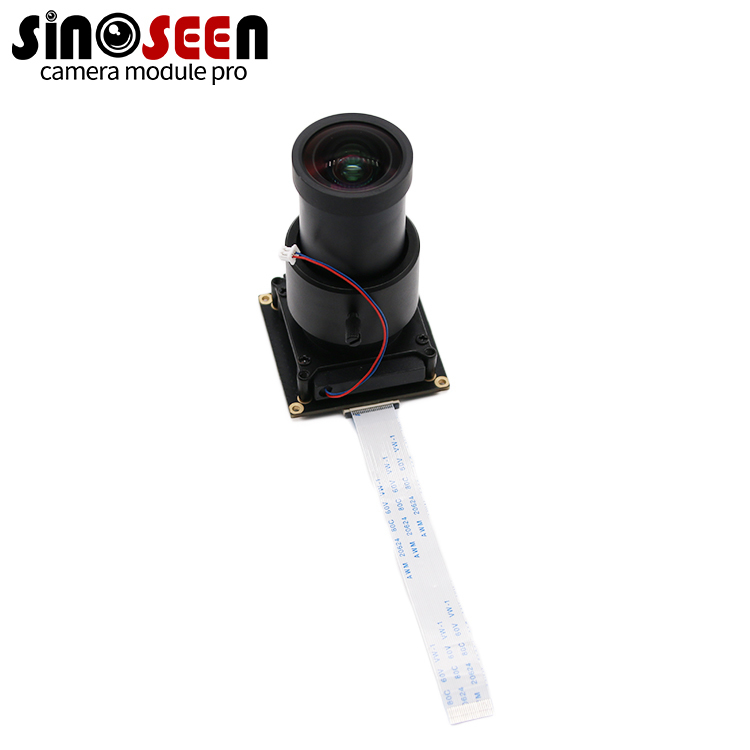

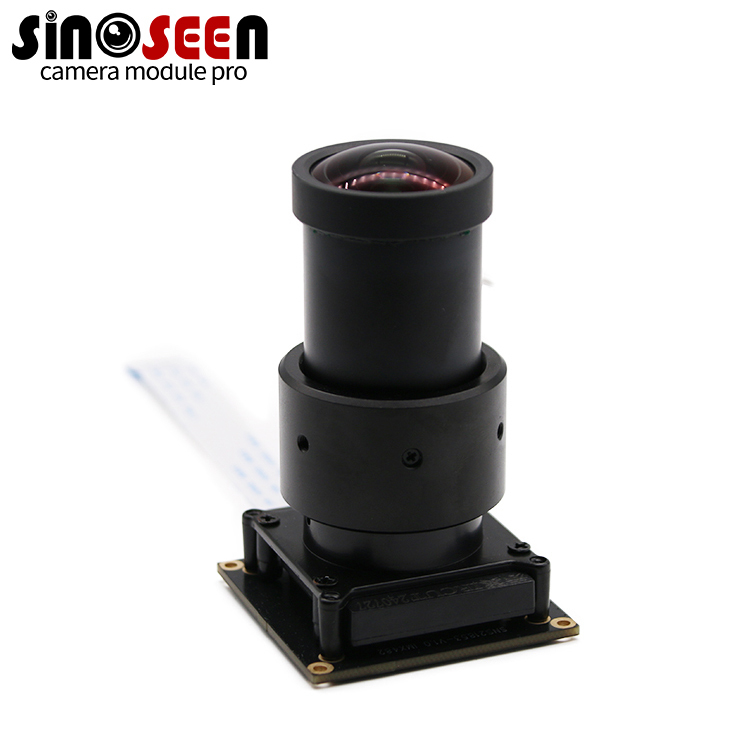

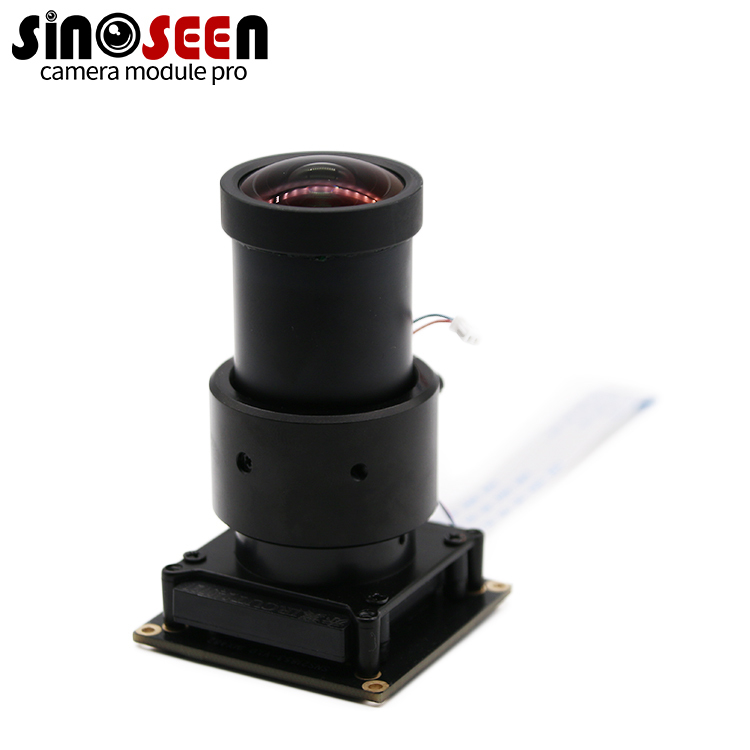

IMX482 Raspberry Pi Camera Module 4MP Sensor with AI Face Recognition
제품 상세 정보:
| Place of Origin: | China |
| 브랜드 이름: | Sinoseen |
| 인증: | RoHS、ISO9001、CE |
| Model Number: | SNS21853-V1.0 |
결제 및 배송 조건:
| Minimum Order Quantity: | 5 |
|---|---|
| 가격: | 10-100usd or negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3week |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
상세 정보 |
|||
| Type:: | Raspberry PI Camera Module | Sensor:: | IMX482 |
|---|---|---|---|
| Resolution:: | 640H x 488V | Dimensions:: | 38mmx38mm (compatible With 32mmx32mm) |
| 강조하다: | IMX482 Raspberry Pi camera module,4MP Raspberry Pi camera,Raspberry Pi AI face recognition camera |
||
제품 설명
Upgrade Your Surveillance System with IMX482 Raspberry Pi Camera Module
4MP Sensor with AI Face Recognition for intelligent security applications
Key Specifications
| Type | Raspberry PI Camera Module |
|---|---|
| Sensor | IMX482 |
| Resolution | 640H x 488V |
| Dimensions | 38mm x 38mm (compatible with 32mm x 32mm) |
Product Overview
The Sinoseen SNS-21853-V1.0 features a SONY IMX482 4MP sensor and HiSilicon Hi3516DV300 processor, delivering exceptional image quality with 120dB WDR and 3D noise reduction for consistent performance in all lighting conditions.
This advanced module includes AI face recognition capable of tracking and capturing up to 32 faces per frame, making it ideal for intelligent access control, smart surveillance systems, and facial analytics applications. H.265+ compression with ROI ensures high-quality video while minimizing bandwidth usage.
Key Features
- Crystal-Clear 4MP Video: High sensitivity sensor for excellent day/night performance
- Intelligent Security: Advanced multi-face detection & tracking capabilities
- Efficient Operation: Optimized encoding reduces bandwidth and storage requirements
- Universal Compatibility: Works with popular platforms and cloud technologies
Technical Specifications
| Sensor Type | 1/1.8 inch progressive scan CMOS 4 megapixels SC4210 |
|---|---|
| Processor | HiSilicon Hi3516DV300 Digital Signal Processor |
| Electronic Shutter | 1/12s ~ 1/8000s |
| Minimum Illumination | Color 0.005lux F1.7; B/W 0.001Lux F1.7 |
| WDR | ≥ 120dB |
| Video Compression | H.265+/H.265/H.264/MJPEG |
| Maximum Resolution | 2560 × 1440 |
Smart Features
- Supports ROI enhancement encoding with 4 configurable regions of interest
- Advanced detection capabilities including motion, sound, and area intrusion
- Intelligent noise reduction and alarm control
- Multiple detection modes including virtual cordon and privacy masking
Customization Services
We offer hardware modifications, image tuning adjustments, and firmware adaptations to perfectly integrate with your specific system requirements.
About Sinoseen
A trusted camera module manufacturer since 2016, Sinoseen specializes in full OEM/ODM services with a strong commitment to quality and technological innovation.
