상세 정보 |
|||
| 종류: | 카메라 모듈 | 센서: | 1/5' OV2312 |
|---|---|---|---|
| 결의: | 2MP 1600*1300 | 크기: | 사용자 정의 가능 |
| 프레임 속도: | 60FPS | 렌즈 FOV: | 68°(선택) |
| 인터페이스: | MIPI | 특징: | 글로바 셔터 |
| 강조하다: | 2MP MIPI camera module,Global shutter camera module,OV2312 60FPS camera |
||
제품 설명
| Attribute | Value |
|---|---|
| Type | Camera Module |
| Sensor | 1/5' OV2312 |
| Resolution | 2MP 1600*1300 |
| Dimensions | Customizable |
| Frame Rate | 60FPS |
| Lens FOV | 68°(optional) |
| Interface | MIPI |
| Feature | Globar shutter |

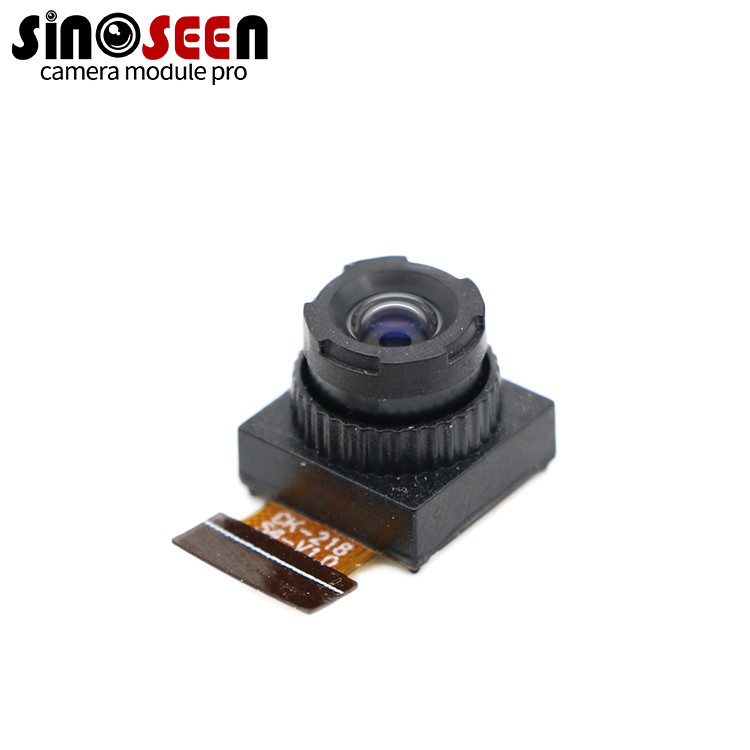

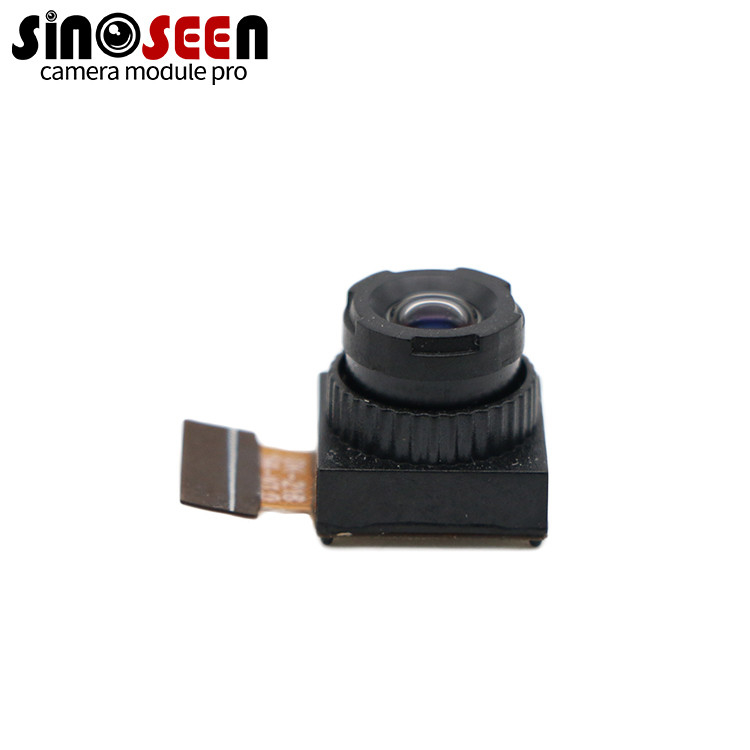

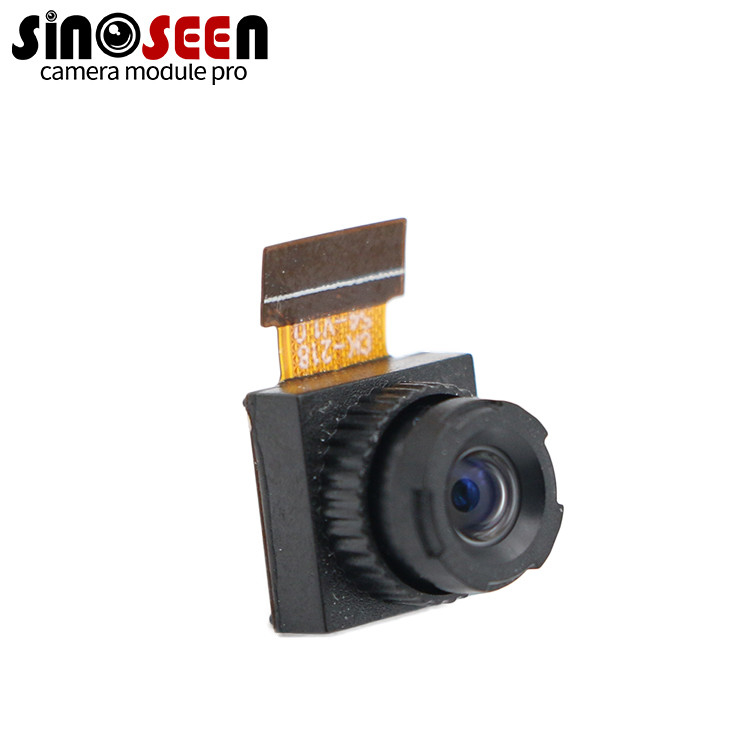

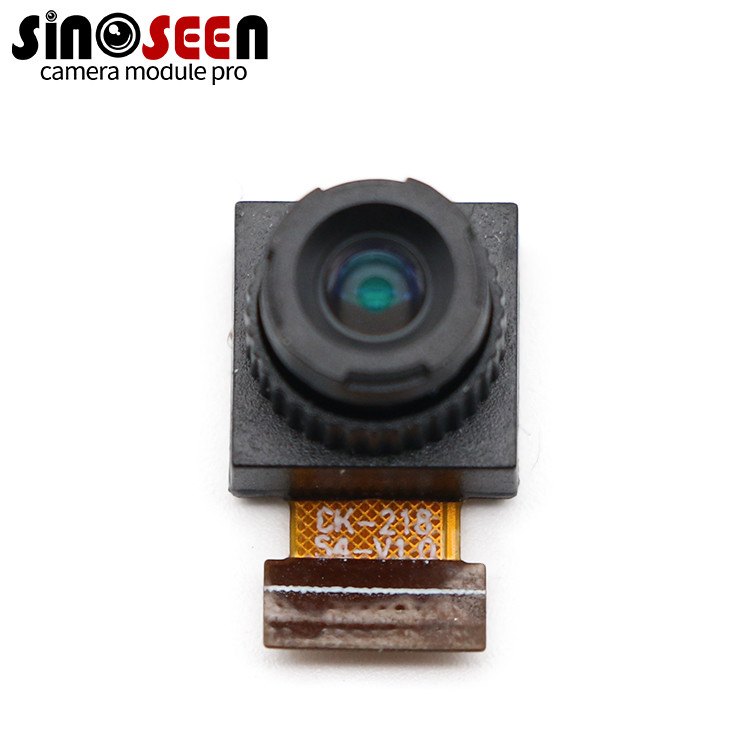

Engineered with the OV2312 sensor, this 2MP MIPI camera module delivers exceptional imaging clarity and speed in a compact footprint. Supporting a high frame rate of 60fps and global shutter capture, it is optimized for advanced embedded vision systems. Its RGB-IR sensor enhances detection in both standard and infrared spectrums.
- Crisp 1600×1300 imaging with 2MP resolution
- Real-time 60fps frame rate ideal for AI vision algorithms
- Global shutter reduces rolling effects in fast-moving scenes
- Infrared + visible light support for all-day performance
- Lightweight and space-efficient design
- Seamless integration with MIPI-based platforms
- Smart cockpit solutions
- Gesture recognition systems
- Drones and automation devices
- Surveillance with AI video analytics
| Module | CK-21854-V1.0 |
| Sensor | OV2312 CMOS |
| Pixel | 2MP |
| Most effective pixels | 1600*1300 |
| Pixel Size | 3um*3um |
| Image area | 4857.7um*3955.9um |
| Frame rate | 30fps |
| Shutter Type | Globar shutter |
| Focus type | Fixed focus |
| S/N ratio | 37.4 dB |
| Dynamic range | 68 dB |
| Power supply | analog:2.8v core:1.2v I/O:1.8v |
| Output interface | 2-lane MIPI serial output and DVP parallel output |
| Output formats | 10-bit RGB-IR RAW |
| lens size | 1/2.9' |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 60°C |
| Support OS | WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
From hardware-level modifications to optical and sensor tuning, we offer full-scale customization services. Contact us to adapt this camera module to your industrial, automotive, or consumer-grade product.
