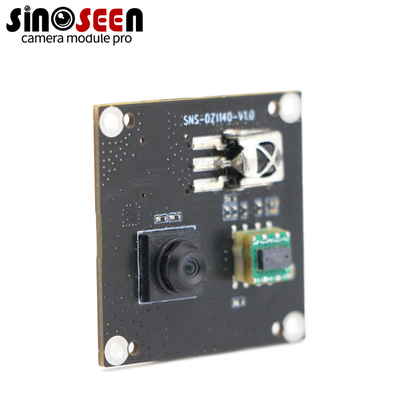

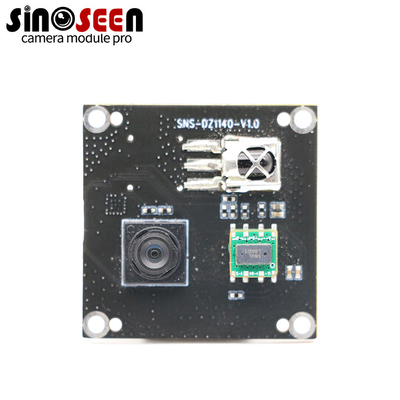

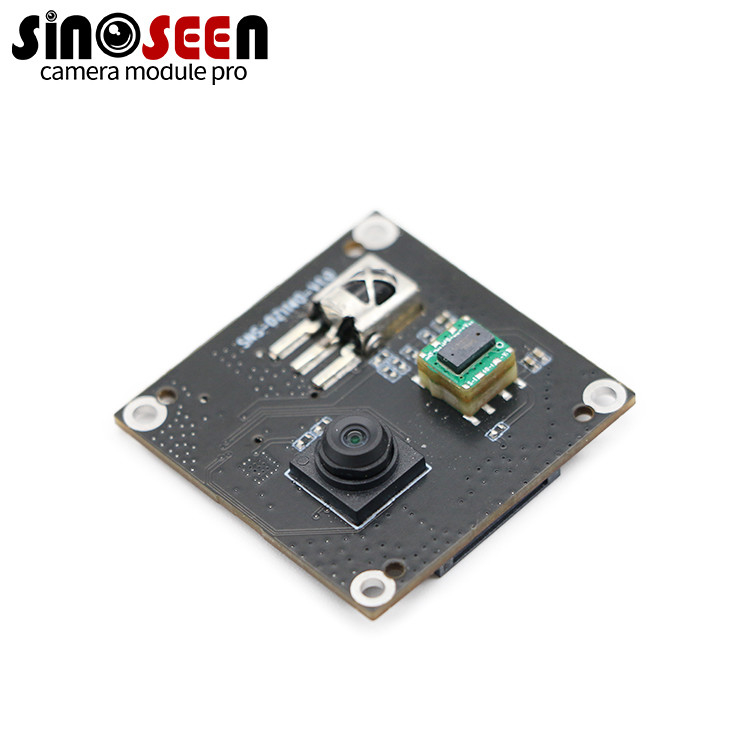

Revolutionize Your Video 640x480 resolution Conferencing Experience with Sinoseen BF20A6 1/10-inch CMOS sensor USB Camera Module
제품 상세 정보:
| 원래 장소: | 센즈헨, 중국 |
| 브랜드 이름: | Sinoseen |
| 인증: | RoHS |
| 모델 번호: | SNS-DZ1140-V10 |
결제 및 배송 조건:
| 최소 주문 수량: | 3 |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 트레이+카드박스 안의 반 정적 가방 |
| 배달 시간: | 2~3주 |
| 지불 조건: | T/T |
| 공급 능력: | 500000개 부분 / 달 |
|
상세 정보 |
|||
| 종류: | USB 카메라 모듈 | 센서: | BF20A6 1/10 인치 |
|---|---|---|---|
| 결의: | 30W 640*480 | 크기: | 사용자 정의 가능 |
| 프레임 속도: | 30fps | 렌즈 FOV: | 51' |
| 인터페이스: | USB | ||
제품 설명
Transform your video conferencing experience with the Sinoseen BF20A6 USB Camera Module. This compact 1/10-inch CMOS sensor module delivers high-quality 640x480 resolution video at 30 frames per second, making it ideal for conference phones and embedded communication systems.
- BF20A6 1/10-inch CMOS sensor for reliable image capture
- 640×480 resolution at 30FPS for smooth video
- Fixed-focus design reduces hardware complexity
- Standard USB interface for easy integration
- Low-light performance for various lighting conditions
- Ultra-low 30W power consumption for energy efficiency
| Attribute | Value |
|---|---|
| Type | USB Camera Module |
| Sensor | BF20A6 1/10 inch |
| Resolution | 30W 640×480 |
| Frame Rate | 30FPS |
| Lens FOV | 51° |
| Interface | USB |
| Module | SNS-DZ1140-V1.0 |
| Sensor | BF20A6 CMOS |
| Image sensor size | 1/10 inch |
| Pixel | 30W |
| Most effective pixels | 640×480 |
| Pixel Size | 2.25um×2.25um |
| Frame rate | 30fps |
| Optical distortion | ≤15.5% |
| Image sensor Data output | RAW Data 10bits |
| Focus type | Fixed focus |
| Output interface | USB2.0 |
| Video output | YUV |
| Output formats | RAW Bayer 10bits |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 60°C |
| Supported OS | Windows XP/Vista/7/8/10, Linux (above 2.6.26), Mac OS X 10.4.8+, Android 4.0+ |
The Sinoseen SNS-DZ1140-V1.0 Camera Module simplifies product design while enhancing video quality. Its fixed-focus design reduces hardware costs and eliminates complex focusing mechanisms, solving the high cost and integration challenges of traditional solutions.
With broad compatibility across operating systems and energy-efficient operation, this module delivers high-quality video conferencing capabilities with lower costs and simpler integration, boosting your product's market competitiveness.
