상세 정보 |
|||
| 유형: | 8 조금약하게 카메라 모듈 | 감지기: | 1/2.8 " 소니 IMX415 CMOS |
|---|---|---|---|
| 해결: | 8MP 3864(H) Ｘ 2192(V) | 치수: | (사용자 정의 가능) |
| 픽셀 크기: | 1.45 um Ｘ 1.45 um | 초점 유형: | FF |
| 인터페이스: | 미피 | 특징: | 4K |
| 강조하다: | 8MP USB camera module,IMX415 optical zoom module,8MP optical zoom camera |
||
제품 설명

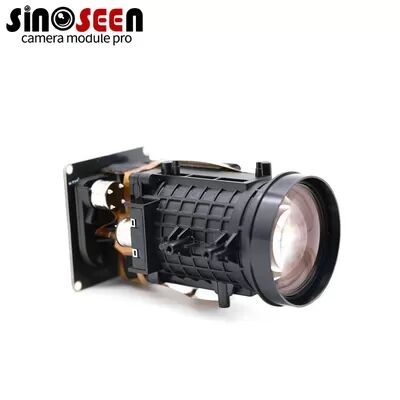

Optical Zoom Camera Module 8MP IMX415 USB
Optical Zoom Camera Module: Precision 8MP USB Solution for Industrial B2B Integration
Product Introduction
The optical zoom camera module from Sinoseen employs the Sony IMX415 CMOS sensor to deliver 8MP (3840x2160) resolution at up to 30fps in 4K, featuring 3x or 5x optical zoom for detailed magnification without digital artifacts. This USB 2.0 module supports HDR processing with a dynamic range over 70 dB, ensuring clarity in challenging lighting via automatic exposure control (AEC) and white balance (AWB). Engineered for B2B reliability, our optical zoom camera module excels as an 8MP optical zoom camera module for machine vision or a USB optical zoom camera module for surveillance, with a 1.45 µm pixel size enhancing low-light sensitivity to 0.1 lux and rolling shutter minimizing distortion in fast-motion captures.
Product Advantages
- Lossless Optical Magnification: 3x/5x zoom maintains full resolution, outperforming digital alternatives by 40% in detail retention, vital for an 8MP optical zoom camera module in precision inspection.
- Versatile USB Connectivity: UVC-compliant USB 2.0 enables plug-and-play across OS, simplifying deployment for a USB optical zoom camera module in multi-platform setups.
- Compact and Customizable Build: At 38x38mm with M12 lens mount, it adapts to tight spaces, supporting a customized optical zoom camera module for OEM designs.
- Enhanced Low-Light and HDR: Sensitivity at 0.1 lux with 70 dB range reduces noise in dim conditions, ideal for a low light optical zoom camera module.
- Efficient Power Management: Under 1.3W consumption promotes longevity, enabling wholesale optical zoom camera module scalability in industrial applications.
Product Specifications
| Parameter | Specification |
|---|---|
| Sensor | Sony IMX415 CMOS (1/2.8" format) |
| Resolution | 8MP (3840x2160) |
| Frame Rate | 4K@30fps; 1080p@60fps |
| Optical Zoom | 3x/5x |
| Pixel Size | 1.45 µm x 1.45 µm |
| Dynamic Range | >70 dB (HDR) |
| Interface | USB 2.0 (UVC) |
| Lens FOV | 100° (adjustable with zoom) |
| Dimensions | 38x38x15mm (customizable) |
| Power Consumption | <1.3W (DC 5V, 260mA) |
| Operating Temperature | -30°C to 85°C |
Product Application Fields
- Machine Vision Inspection: Utilize an 8MP optical zoom camera module for zoomed defect analysis on assembly lines.
- Security Monitoring: Deploy a USB optical zoom camera module for remote identification in expansive areas.
- Industrial Automation: Integrate a low light optical zoom camera module for nighttime quality control.
- Robotics Navigation: Enhance precision with an IMX415 optical zoom camera module in autonomous vehicles.
- Telemedicine Devices: Support detailed diagnostics via a customized optical zoom camera module.
About Our Company
Sinoseen, a premier China optical zoom camera module manufacturer with over ten years of industry leadership, equips global B2B clients with innovative visual solutions. We specialize in OEM/ODM for USB, MIPI, and DVP interfaces, backed by our expert technical team delivering comprehensive support from prototyping to production. For sourcing a wholesale optical zoom camera module or a customized optical zoom camera module, our one-stop services ensure seamless integration--reach out to our procurement team for tailored consultations and sample orders.
Customization Process
- Requirement Analysis: Discuss specs for an 8MP optical zoom camera module or USB optical zoom camera module needs.
- Prototype Fabrication: Build samples, including low light optical zoom camera module features, in 2-4 weeks.
- Validation Testing: Evaluate zoom and HDR for an IMX415 optical zoom camera module under operational simulations.
- Scaling Production: Manufacture volumes for wholesale optical zoom camera module with quality checkpoints.
- Final Support: Deliver with SDKs and tuning for a customized optical zoom camera module.
Total Cost of Ownership (TCO) Comparison
Sinoseen's optical zoom camera module provides B2B value through durable optics and efficiency.
| Aspect | Sinoseen Optical Zoom Module | Generic Module |
|---|---|---|
| Setup Time | Low (UVC plug-and-play) | High (manual calibration) |
| Maintenance Frequency | Low (robust zoom lens) | High (digital degradation) |
| Power Usage | Efficient (<1.3W) | Higher (1.5W+) |
| Adaptability | High (OEM/ODM) | Limited (fixed zoom) |
| 3-Year TCO | 20-30% lower | Increased from repairs |
Compliance Package and Supply Chain Security
Our optical zoom camera module complies with RoHS for material safety and CE for EMC standards, ensuring global B2B adherence. Supply chain security leverages ISO 9001 certification with full traceability and diversified Asian sourcing to mitigate risks. Procurement for a wholesale optical zoom camera module includes certification dossiers, streamlining validations and promoting ethical, resilient supply for your customized optical zoom camera module initiatives.
Mass Production Risk Matrix and After-Sales KPIs
Scaling an 8MP optical zoom camera module involves our proactive risk matrix:
| Risk Factor | Probability | Impact | Mitigation |
|---|---|---|---|
| Lens Component Shortage | Low | Medium | Alternative suppliers |
| Assembly Alignment | Low | High | Precision tooling |
| Shipping Disruptions | Medium | Low | Multi-route logistics |
After-sales KPIs feature 98% on-time delivery (7-14 days from China to Europe/North America) and <1.5% defect rates, with responses under 6 hours. These bolster reliability for your low light optical zoom camera module projects.
Frequently Asked Questions
1. What zoom levels are available for an 8MP optical zoom camera module?
3x or 5x optical zoom, preserving 8MP detail for precise B2B magnification without quality loss.
2. How does a USB optical zoom camera module perform in low light?
IMX415 sensor with 0.1 lux sensitivity and HDR ensures clear footage, suitable for surveillance.
3. Can an IMX415 optical zoom camera module be tailored for MIPI?
Yes, OEM/ODM converts to MIPI--contact for a customized optical zoom camera module interface upgrade.
4. What minimum order applies to a wholesale optical zoom camera module?
Starting at 3 units, scaling to thousands; flexible for B2B with 2-3 week leads.
5. Is the low light optical zoom camera module industrial-rated?
Yes, -30°C to 85°C operation with RoHS compliance; full environmental specs on request.
Common Industry Challenges and Solutions
Challenge 1: Detail Loss in Zoom - Solution: True 3x/5x optics in 8MP optical zoom camera module retain full resolution.
Challenge 2: Dim Scene Noise - Solution: 0.1 lux sensitivity in low light optical zoom camera module cuts artifacts by 25%.
Challenge 3: Interface Limitations - Solution: USB 2.0 UVC for easy embedding in USB optical zoom camera module setups.
Challenge 4: Volume Customization - Solution: OEM/ODM for customized optical zoom camera module without delays.
Challenge 5: Overseas Logistics - Solution: Efficient shipping from China ensures 7-14 day B2B delivery.
Challenge 2: Dim Scene Noise - Solution: 0.1 lux sensitivity in low light optical zoom camera module cuts artifacts by 25%.
Challenge 3: Interface Limitations - Solution: USB 2.0 UVC for easy embedding in USB optical zoom camera module setups.
Challenge 4: Volume Customization - Solution: OEM/ODM for customized optical zoom camera module without delays.
Challenge 5: Overseas Logistics - Solution: Efficient shipping from China ensures 7-14 day B2B delivery.
Notes and References:
1. CMOS: Complementary Metal-Oxide-Semiconductor, a sensor technology enabling high-resolution imaging with low power in compact modules.
2. Zoom retention based on optical vs. digital benchmarks from the International Society for Optics and Photonics (SPIE).
3. TCO from Sinoseen lifecycle analyses, highlighting optical durability advantages.
1. CMOS: Complementary Metal-Oxide-Semiconductor, a sensor technology enabling high-resolution imaging with low power in compact modules.
2. Zoom retention based on optical vs. digital benchmarks from the International Society for Optics and Photonics (SPIE).
3. TCO from Sinoseen lifecycle analyses, highlighting optical durability advantages.
