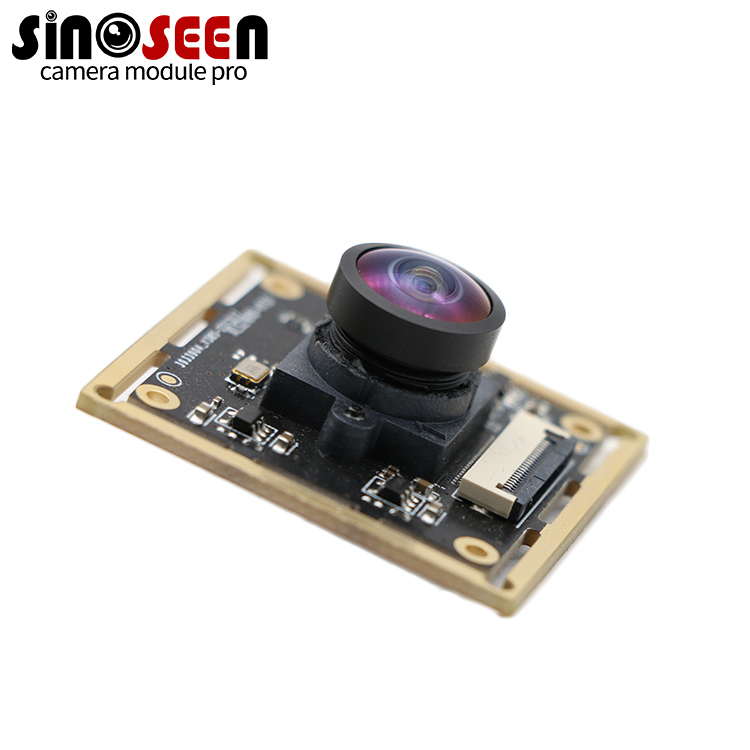

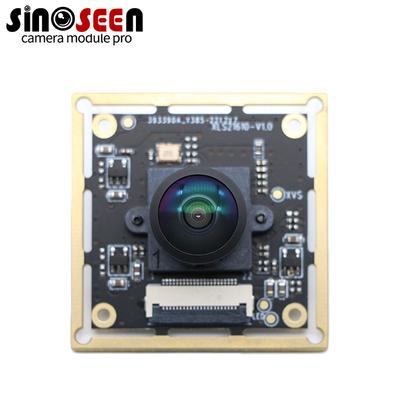

Raspberry Pi Camera Module with 1080p 120FPS High-Speed Output and SONY IMX290LQR-C Sensor for Imaging in Various Project
제품 상세 정보:
| 원래 장소: | 중국 |
| 브랜드 이름: | Sinoseen |
| 인증: | RoHS、ISO9001、CE |
| 모델 번호: | XLS21610-V1.0 |
결제 및 배송 조건:
| 최소 주문 수량: | 5 |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 트레이+카드박스 안의 반 정적 가방 |
| 배달 시간: | 2-3week |
| 지불 조건: | T/T |
| 공급 능력: | 500000개 부분 / 달 |
|
상세 정보 |
|||
| 종류:: | 라즈베리 파이 카메라 모듈 | 센서 :: | SNOY IMX290 |
|---|---|---|---|
| 결의안 :: | 1920*1080 | 차원 :: | (32mmx32mm으로 적합한) 38mmx38mm |
| 강조하다: | High-Speed Output Pi Camera Module,1080p Raspberry Pi Camera Module,IMX290LQR-C Sensor Raspberry Pi Camera Module |
||
제품 설명
Designed for Raspberry Pi, this SONY IMX290LQR-C CMOS camera module is equipped with a 6.45mm (1/2.8-inch) IMX290 image sensor. It can capture images with a resolution of 1920x1080 (Full HD) and supports high-speed video output up to 120 frames per second, providing smooth and clear color images for your projects.
The IMX290LQR-C sensor has a square array of 2.40M effective pixels, and achieves excellent image quality with high sensitivity, low dark current and no smear through R, G, B primary color mosaic filters. It uses a triple power supply of analog 3.3V, digital 1.1V and interface 1.8V to ensure low power operation. The module is equipped with an electronic shutter with variable charge integration time and supports multiple reading modes such as full pixel scanning and 2/2 line pixel merging. This module is particularly suitable for security cameras and performs well in high dynamic range (HDR) applications. Its size is 38mmx38mm, which is compatible with the installation size of 32mmx32mm, making it easy to integrate into various Raspberry Pi projects to help you achieve the best imaging effect.
Product Highlights
- 1080p@120FPS high-speed output: Provides smooth full HD color video.
- SONY IMX290LQR-C sensor: High sensitivity, low dark current, no smear, and excellent image quality.
- Low power design: Triple power supply is used to optimize energy consumption.
- Supports multiple reading modes: including full pixel scanning and pixel merging.
- HDR application optimization: Excellent performance under complex lighting, especially suitable for security monitoring.
| Product Name | SONY IMX290LQR-C |
| Sensor Type | CMOS |
| Shutter Type | Rolling Shutter |
| Recording Pixels | 1920(H) x 1080(V) |
| Resolution | 2.07M |
| Optical Format | 1/2.8" |
| Pixel Size | 2.90µm x 2.90µm |
| Chromatic | Color |
| Maximal Frame Rate @Full Resolution |
120fps (10bit) 60fps (12bit) |
| Bit Depth | 10bit 12bit |
| Interface |
CMOS Parallel sub LVDS Serial (4, 8 lanes) MIPI CSI-2 (2, 4 lanes) |
