38mmx38mm Raspberry Pi Camera Module 5MP OV5647 Sensor Versatile Output For Digital Camera And Machine Vision Projects
제품 상세 정보:
| 원래 장소: | 중국 |
| 브랜드 이름: | Sinoseen |
| 인증: | RoHS、ISO9001、CE |
| 모델 번호: | XLS51660-V1.0 |
결제 및 배송 조건:
| 최소 주문 수량: | 5 |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 트레이+카드박스 안의 반 정적 가방 |
| 배달 시간: | 2-3week |
| 지불 조건: | T/T |
| 공급 능력: | 500000개 부분 / 달 |
|
상세 정보 |
|||
| 종류:: | 라즈베리 파이 카메라 모듈 | 센서: | OV5647 |
|---|---|---|---|
| 결의: | 1920*1080 | 크기: | (32mmx32mm으로 적합한) 38mmx38mm |
| 강조하다: | OV5647 Raspberry Pi Camera Module,Machine Vision Raspberry Pi Camera Module |
||
제품 설명

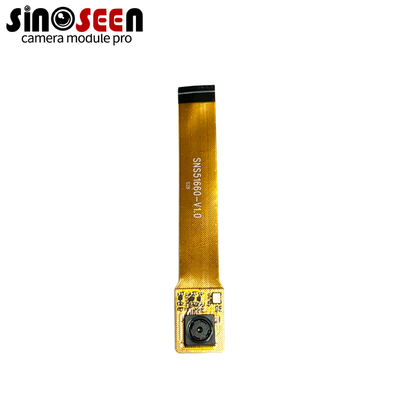

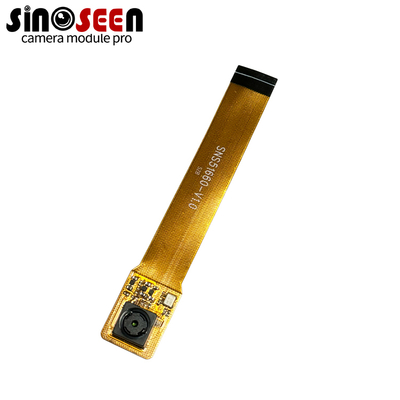

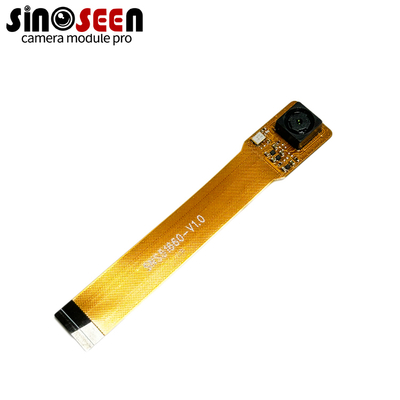

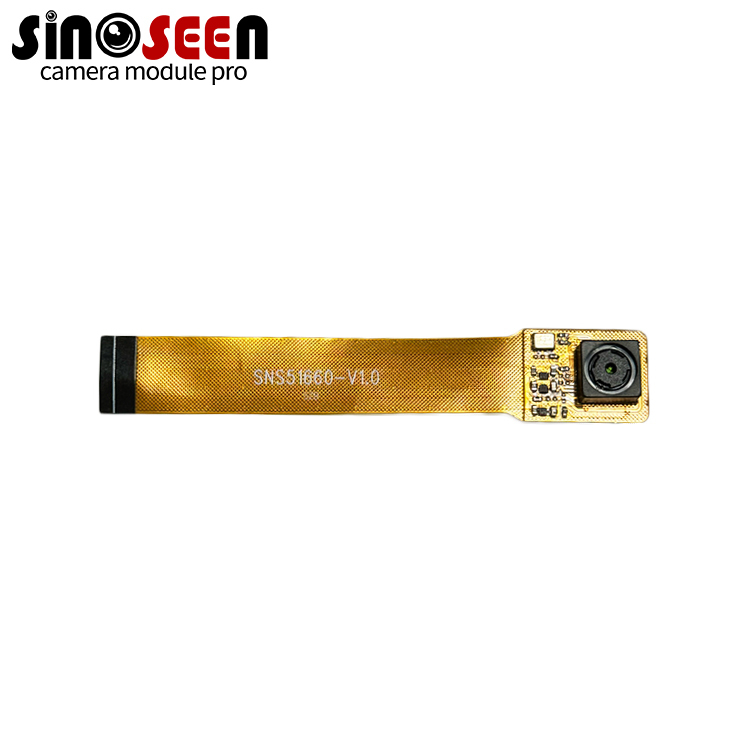

Designed for Raspberry Pi, this OV5647 camera module is equipped with a 1/4-inch OmniVision OV5647 image sensor, which provides high-performance imaging with its 1.4-micron pixel OmniBSI™ technology. It ensures high sensitivity, low noise and low crosstalk, providing excellent image quality for your project.
The module is capable of outputting 1920x1080 (Full HD) images and supports image capture at 15 frames per second at resolutions up to QSXGA (2592x1944). It supports multiple output formats, including 8-/10-bit raw RGB data. The OV5647 module integrates comprehensive automatic image control functions, including automatic exposure control (AEC), automatic gain control (AGC) and automatic white balance (AWB), which greatly simplifies use. In addition, it also has functions such as LED and flash strobe mode, horizontal and vertical subsampling, and internal/external frame synchronization. The module size is 38mmx38mm, compatible with 32mmx32mm installation, and is an ideal choice for various digital camera applications and machine vision projects, meeting your needs for high-quality imaging.
Product Highlights
- Designed for Raspberry Pi: strong compatibility and easy integration.
- OV5647 OmniBSI™ technology: achieves high sensitivity, low noise and low crosstalk.
- 5MP HD imaging: supports 2592x1944 resolution and provides clear images.
- Fully automatic image control: with AEC, AGC, AWB and other functions, simplifying operation.
- Versatile output and synchronization: supports multiple formats and provides flexible image processing.
